1stPV 23.6″ Super HD 5MP/2592×1944 16:9 Professional Security Monitor, 1 HDMI & 2 BNC Inputs(HD-TVI/AHD/CVI/CVBS) & 2 BNC Outputs, working with 5MP security cameras directly in addition to DVR/NVR &PC

Price: $212.59
(as of May 01, 2025 11:40:24 UTC – Details)

Product Description

This is a brand new high performance 23.6-inch LED/LCD video monitor specifically designed for security Industry. It displays high quality video or computer signals via multiple inputs. Its features include one HDMI, two BNC input, and two looping BNC output. Additional features include multi-language OSD (On-Screen Display).

Feature:

Ultra fine pixel pitch for close viewing in surveillance applicationsThe newest high definition, HD-TVI, HD-AHD, and HD-CVI, cameras will look crisp and lifelike. HD-TVI/AHD up to 5MP (2592×1440), HD-CVI up to 4MP (2560×1440), and CVBS up to 1000TVL.Existing and new HD surveillance system compatibility with multiple video formats including new full high definition HD-TVI/HD-AHD/HD-CVI and traditional standard definition 960H/composite video cameras(can connect with analog HD/SD camera directly).Multiple inputs allow multi-device setups without the need to juggle cordsFast 5 ms response time to avoid blurred motion monitoring and feed delays on critical momentAuto display recovery after power interruptionsGreat reliability rating 24/7 security application requirementsWide view angle of 178 degrees for fewer restrictions on your range of visionDesktop stand and standard VESA wall mount holes for desktop and wall mount installationsErgonomic tilt and swivel design for a more efficient, productive, and safer workplaceUser friendly front push button operation

Specification:

Model No.: 1PV-D236HD

Size: 23.6″ Wide Screen

Brightness: 250cd/m2

Contrast Ratio: 1000:1

Response Time: 5 ms

Colors: 16.7M

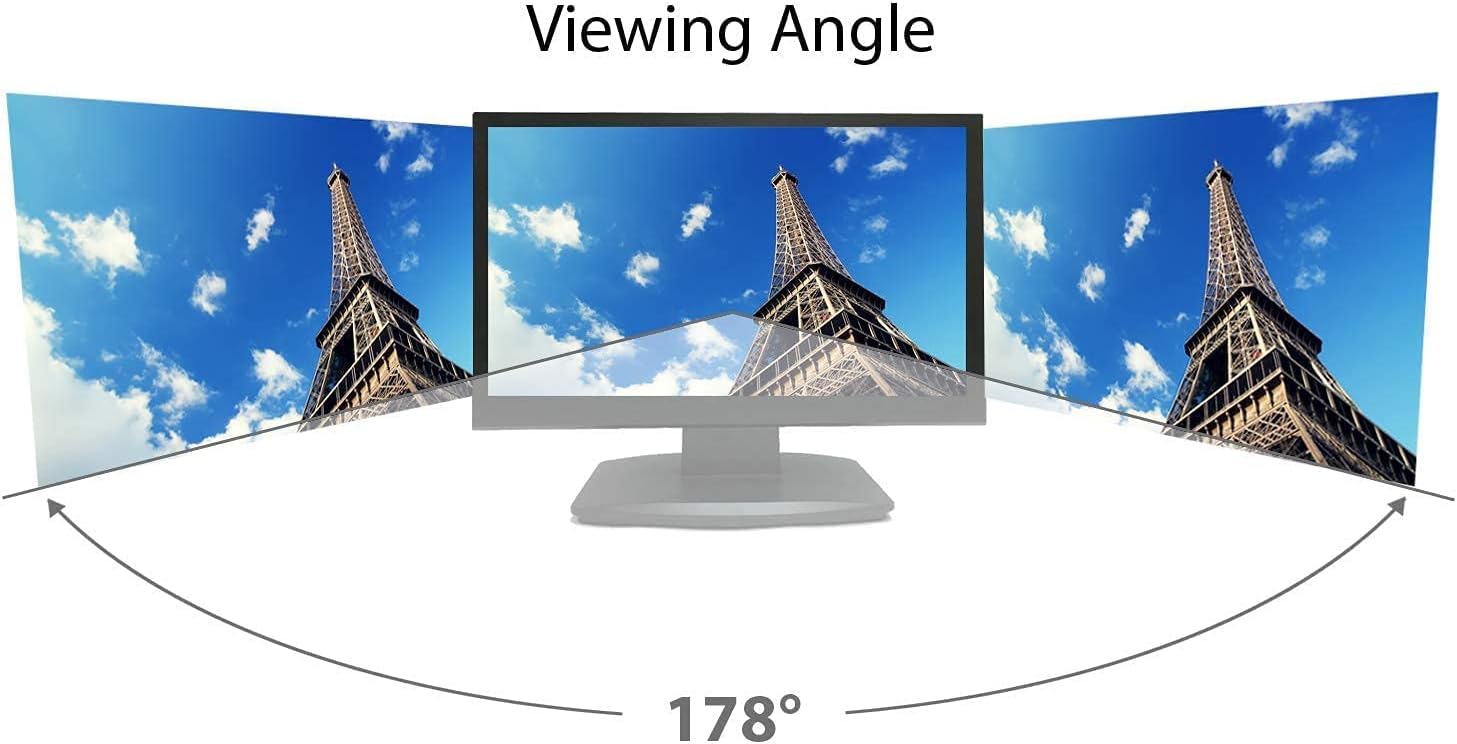

Viewing Angle: H:178°/V:178°

Video Inputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS), 1x HDMI

Video Outputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS)

HDMI Format: 4MP/2560×1440@30/60, 2MP/19201080@25/30/50/60HZ, 1600×1200@60HZ, 1440×900@60HZ, 1366×768@60HZ, 1280×1024@60HZ, 1280×720@60HZ, 1024×768@60HZ, 800×600@60HZ

Analog HD:

TVI: 5MP/2592×1944@20fps, 4MP/2560×1440@25/30fps, 2MP/1920x1080P@25/30fps, 1MP/1280x720P@25/30fps

AHD: 5MP/2592×1944@20fps , 4MP/2560×1440@25/30fps, 2MP/1920x1080P@25/30fps, 1MP/1280x720P@25/30fps

CVI: 4MP/2560×1440@25/30fps, 2MP/1920x1080P@25/30fps, 1MP/1280x720P@25/30/50/60fps

Power Consumption: 12VDC, 3A, <25W

VESA Size: 100x100mm

Auto Adjustment: Yes

OSD Menu: Yes

OSD Language: English, Spanish, German, Russian, Italian and French

Working Temperature: 0 ~ 40℃

Work Humidity: 5% – 90%

Packing Dimensions (LxDxW): 22.8″ x 4.7″ x 17″

Net Weight: 13.9 lbs

What is in the box? (FCC-DOC , CE, and RoHS)

23.6″ HD LED Security Monitor x 1; Power Cord, Adapter, Stand, User’s Guide, HDMI Cable

Tag: CCTV monitor, Security monitor, Security displays, BNC monitor, VGA monitor, Security screen, Security camera monitor, Analog monitor, DVR monitor, NVR monitor, CCTV camera monitor, Remote viewing monitor, Alarm monitor, Access control monitor, Monitoring monitor.

Ultra fine pixel pitch for close viewing in surveillance applicationsAuto display recovery after power interruptionsGreat reliability rating 24/7 security application requirementsWide view angle of 178 degrees for fewer restrictions on your range of vision

Fast 5 ms response time to avoid blurred motion monitoring and feed delays on critical moment

The newest high definition, HD TVI and AHD, cameras will look crisp and lifelike (need a TVI/AHD to HDMI converter)Existing and new HD surveillance system compatibility with multiple video formats including new full high definition HD TVI/AHD (need a TVI/AHD to HDMI converter)and traditional standard definition 960H/composite video cameras(can connect with analog CVBS camera directly).

Video Interface:2 x BNC Composite In => Can connect to camera directly2 x BNC Composite out => Can connect to another monitor1 x HDMI Audio Interface: 1 x PC Audio; Power Interface: 1 x DC in

Professional Full Line Security Monitors

Professional Full Line Security Test Monitor

1. 23.6″ Super HD 5MP/2592×1944 over Coax LED Security Monitor. Support up to 5MP/2592×1944 Super HD-TVI, HD-AHD, and 4MP HD-CVI.
2. Keeps video looking its best by preventing blurry or pixelated images. Preserve original high video quality without artifacts, signal loss, or distortion caused by digital processing and compression through a Digital Video Recorder or Distributor.
3. 1 HDMI & 2 Super HD BNC Video Inputs. BNC video-in port works directly with the new Super HD security cameras without going through any DVR or converters. It will allow security cameras send clear video by using a single Coax cable to the HD monitor, and it can prevent fuzzy or unclear images between the camera, recorder, and monitor.
4. 2 BNC Video Outputs for Second Monitor. Comprehensive range of Super High Definition product line, including cameras, DVRs/NVRs, and Super HD monitors.
5. Super HD 5 megapixel (2592×1944) BNC resolution, which is 10 times higher than the Standard Definition (0.46MP/960H, 0.3MP/CVBS or VGA) BNC resolution from Normal CCTV/security monitors.
6. Fast 5ms response time to avoid blurred motion monitoring and feed delays on critical moment. Auto display recovery after power interruptions. Construction-black plastic bezel and removable base. NTSC/PAL/SECAM auto detection. Desktop stand and standard VESA wall mount holes for desktop and wall mount installations. Wide view angle of 178 degrees for fewer restrictions on your range of vision.
7. This HD Monitor is design for professional surveillance/security applications, 24/7/365. Need help? Don’t hesitate to contact us by email. We’re here to assist you with any questions or issues.
