Rsrteng CCTV 8K 32MP 12MP IP Camera Tester POE++ Max 90W 2CH SFP Port WiFi Network Tools Cable Tester HDMI VGA Power Output POE++ Detect Power Management

Price: $2,599.99 - $450.95
(as of Apr 29, 2025 20:56:04 UTC – Details)

From the brand

Rsrteng CCTV Tester

Perfect for camera installation,simple work and easy life.

We have been engaged in the security surveillance field more than 10 years. In order to improve the efficiency of installing surveillance camera system, Rsrteng has developed professional camera installation tool —— CCTV Camera Tester.

Rsrteng has been innovating product series to meet customer needs, such as IPC-9800 Plus+ series,IPC-5000 Plus series,IPC-7600 Plus series,X9 series and more, and it is still increasing. Thank you for your support.

IPC-9800 Pro Series

X9-MOVTADHS Pro/X9-MOVTADHS

IPC-H20 Series

IPC-H12 Series, X7 Series

IPC-5200 Plus Series

IPC-7600 Plus Series

RSO-6510 Series/IPC-1800ADH

IPCXS Series

OTDR RSO-Series

RSO-6800 Series/V5 i8

IPC-1900 Series/HD-3000 Series

Accessories for CCTV Tester

CCTV Tester Battery

What about the Rsrteng brand?

Rsrteng is a recognized leader in cctv camera tester nowadays. Provide multi-series camera tester to serve every customer, hope it can be helpful to you.

How to solve the problem of using camera tester?

We have professional technical team to provide customers with technical consultation, ensuring every question is well-treated.

How does Rsrteng manage product ideas well?

We attach primary importance to user experience, every function of the camera tester has been strictly inspected by our engineers.

Package Dimensions ‏ : ‎ 13 x 11 x 3.7 inches; 6 Pounds
Batteries ‏ : ‎ 1 Lithium Polymer batteries required. (included)
Date First Available ‏ : ‎ March 7, 2024
Manufacturer ‏ : ‎ Rsrteng
ASIN ‏ : ‎ B0CXDPHJHP

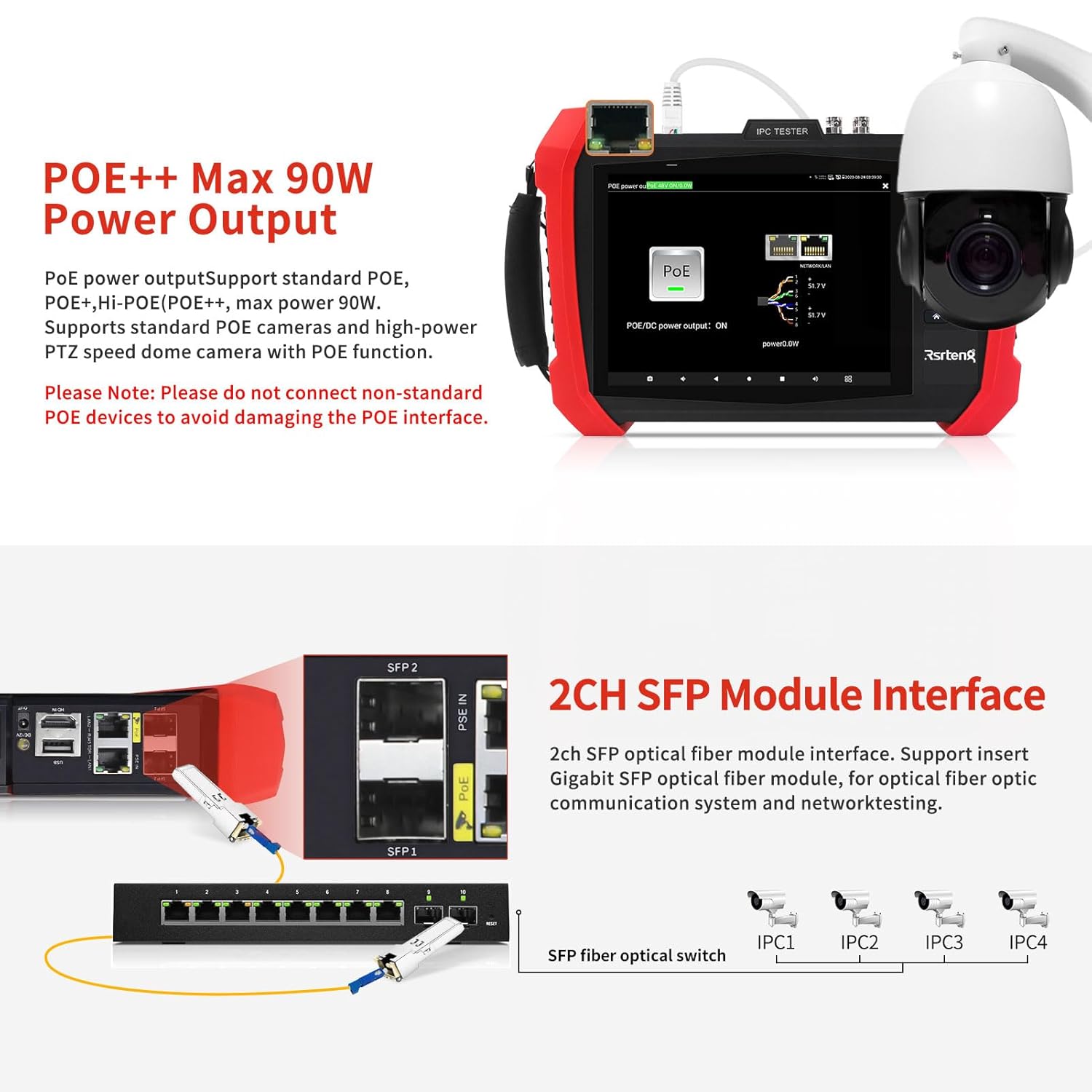

【POE++&2CH SFP Interface】Rsrteng IPC-H20 CCTV Tester support standard IEEE 802.3af&IEEE 802.3at and POE++,max 90W power output.Provide power supply for high-power PTZ speed dome camera.Please note: the camera needs to be compatible with the POE protocol and the output power of the camera needs to be large. The watt-hours displayed by the camera tester will meet the standard. 2CH SFP optical fiber module interface,support insert Gigabit SFP optical fiber module for optical fiber network testing.
【8K IP Camera Tester 】Network camera tester support max 8K 32MP 8160*3616P 24fps 4K 12MP 4000*3000P IP Camera tester. 4CH ONVIF, Rapid Video,auto view the video,IP discovery, CCTV Tester built-in special tools for Hik and for DH and other 3rd brand camera test tools, for Hik and DH cameras, support batch activate for cameras and modify IP address, username and password. Self-defined modify channel name.IPC Tester also compatible with most existing cameras. Create testing report.
【Network Tool & WIFI & POE Detection & Power Management】Network test tool trace route, Link monitor, DHCP server, port flashing, Ping test. Built in WIFI, speeds 433Mbps, 2.4GHz and 5GHz. WIFl analyzer can view wifi information, test wifi strength,analyze channel occupancy and channel rating, etc. Support POE detect. Power management can view real-time data such as voltage and power of POE, DC12V, DC24V output and DC12V input. PSE voltage and power supply protocol detection for POE Switch.
【Cable Tester & Appliction port】POE camera tester built-in UTP cable test, RJ45 TDR cable, cable length app. With cable tracer, can quickly find out the target cable(BNC cable,network cable and telephone cable) from the mess cables. Support PD power test and AC voltage detector. Dual 10/100/1000M Gigabit Ethernet ports.Audio Input/Output,HDMI Input/Output,VGA input, DC output:24V/2A,12V/3A,5V/2A.

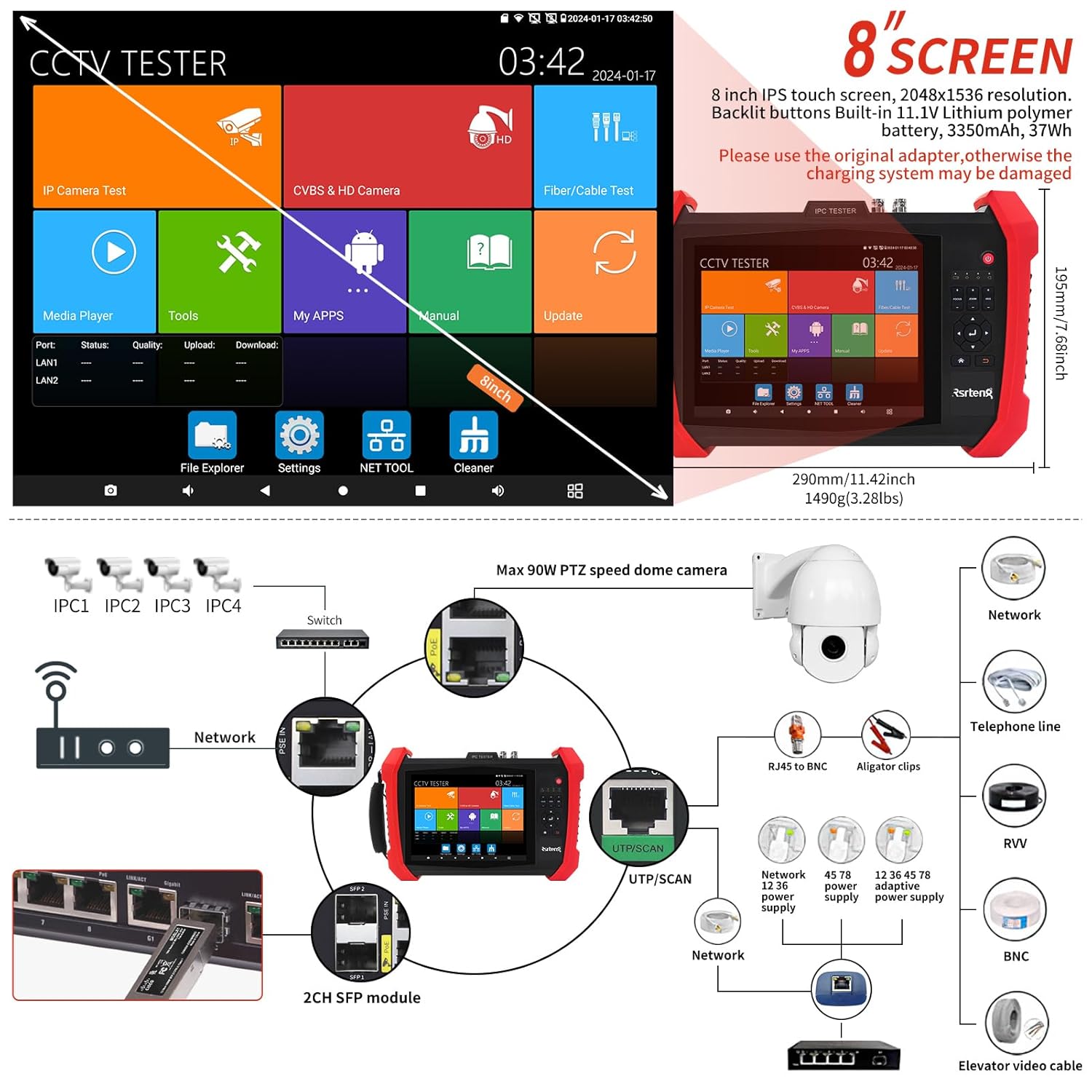

【Power & 8MP Camera & App Update & Quality Assurance】:8 inch IPS touch screen IPC Tester,2048×1536 resolution,Android 11.0 system. Power by 11.1V lithium polymer battery,3350mAh,37Wh. Built-in 8MP camera,support focus detection. Support upgrade the app online or download the file to the SD card for local updates. We have a professional after-sales technical team,so you don’t have to worry about technical problemsWe are the manufacturer of cctv camera tester and have a complete after-sales team. All your technical problems will be solved. Please do not connect non-standard POE devices to avoid damaging the POE interface.
